Visualisation of the birth-death algorithm from treats

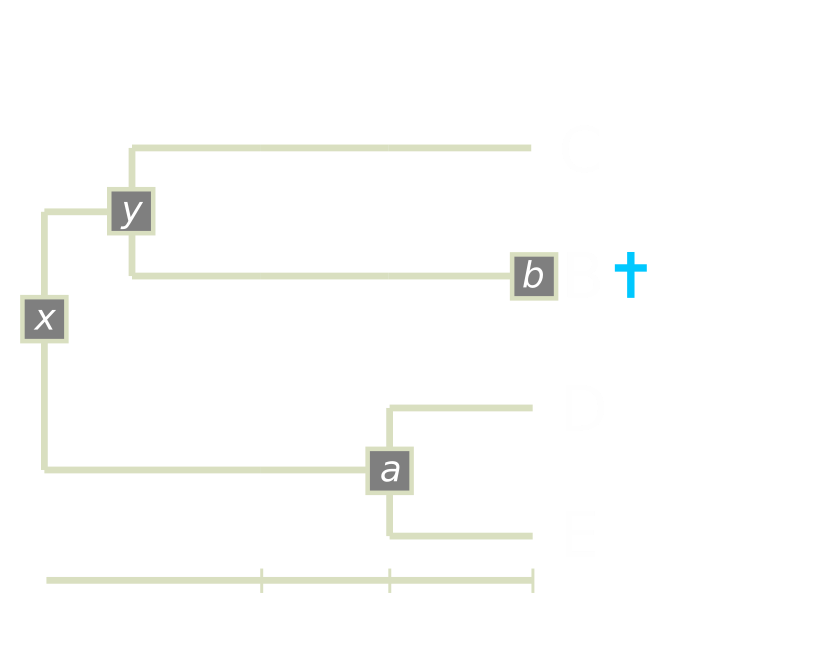

Step 8: Re-running step 4. E.g. making the lineage B go extinct.

Previous step

Next step

Speciation in modifiers "speciation" part of the modifier: by default, a random number between 0 and 1 is drawn, if that number is smaller than the ratio between speciation and speciation + extinction, the lineage speciates (TRUE) or else, the lineage goes extinct (FALSE). In R this is equivalent to:

runif(1) < speciation/(speciation + extinction)

or in the treats algorithm:

runif(1) < (bd.params$speciation/(bd.params$speciation + bd.params$extinction))
